Vertical Form-Fill-Seal System

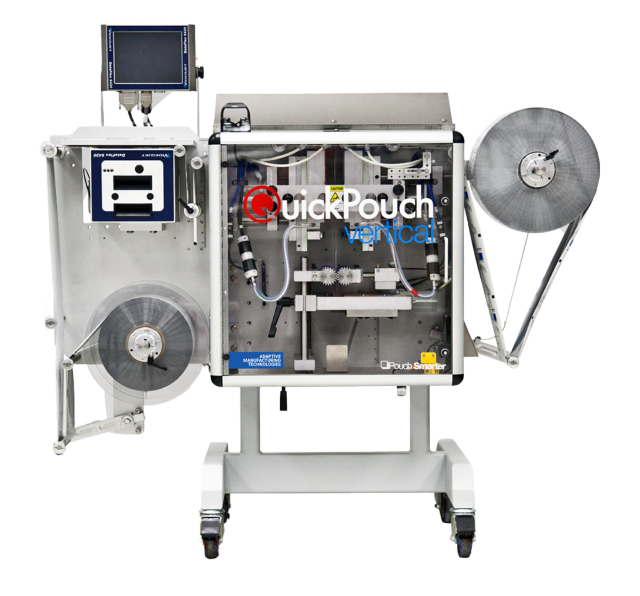

QuickPouch Vertical by RND Automation
A vertical form-fill-seal (FFS) machine that forms a four-sided sealed pouch from rollstock and is explicitly designed for the medical device and IVD industries.
Overview
The QuickPouch Vertical is a compact, economical, customizable pouch form/fill/seal machine designed to fit almost any need. It is a cycle-on-demand system that uses a hot die to form pouches from rollstock, leaving the top of the pouch open for loading, and then sealing the pouch during the next cycle.
The Vertical lets you control key sealing parameters—time, temperature, and pressure—to support consistent, repeatable seal conditions. For validation projects, additional monitoring and documentation packages are available. Built for cleanroom use, it features a fully interlocked Lexan® enclosure that helps control airflow over pouches and parts while protecting the operator.
RND Automation now designs, builds, and supports the QuickPouch Vertical as part of the QuickPouch product family, providing OEM parts, upgrades, and lifecycle services for both new and legacy machines.
Key Features
Designed for Medical & IVD Packaging
Engineered for high-integrity, high-quality packaging in medical device and diagnostic applications, where seal quality and pouch consistency are critical.
Four-Side Sealed Pouches from Rollstock
Forms four-side sealed pouches from dual webs, starting with a single roll of flexible material for better control over pouch format.
Cleanroom-Oriented Design
Fully interlocked Lexan enclosure helps control airflow over pouches and parts, protecting operators and making it suitable for cleanroom environments.
Manual or Automatic Loading
Successfully used as a hand-loaded system and in fully automatic configurations when integrated with feeders or assembly systems.
Benefits
- High-integrity packaging for critical products
- Flexible loading strategy from manual to automated
- Better control over pouch format and materials
- Designed for cleanroom use
- Configurable for specialized applications
Typical Applications
- Medical devices and IVD test kits
- IVD and diagnostic test kits
- Microtiter plates / well plates
- Dental implants
- Medical and industrial components requiring four-side sealed pouches
How It Works
Load Material
Mount roll of material and route through web path into forming section
Form the Pouch
Dual webs create side and bottom seals to define the pouch
Load Product
Place device or component into the open pouch
Seal and Cut
Top seal is applied and pouch is cut to length
Discharge
Pouches discharge to collection or downstream process
Technical Specifications
| Pouch Size (standard) | Up to approx. 6" L × 6" W |
| Pouch Style | Four-side sealed pouch from dual webs |
| Materials | Tyvek®, polyester, foil laminates, paper-based structures |
| Machine Dimensions | Approx. 45" W × 43.5" H × 22" D |
| Operating Modes | Fully automatic mode with timer; manual mode; foot-pedal triggering |
| Indexing | Eyespot or index-to-length |
| Guarding | Fully interlocked Lexan® enclosure, designed for cleanroom use |
Utilities: AC power and compressed air required. Typical configurations use 110–240 VAC single-phase on a dedicated 20–30 A circuit with approximately 100 psi air supply.
Options & Integrations
Manual Mode (Foot Pedal)
In manual mode, operators control the Micro with a foot pedal. Each tap of the pedal triggers the machine to grab, open, and present the next pouch. This gives operators full control over the pace and timing of pouch presentation.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
About QuickPouch Vertical by RND Automation
QuickPouch Vertical is part of the QuickPouch product family at RND Automation. RND has acquired the QuickPouch intellectual property and is the OEM for the current QuickPouch product line, including QuickPouch Vertical, QuickPouch Horizontal, QuickPouch Mini, QuickPouch Micro, and other standard and custom QuickPouch systems, as well as legacy equipment already in the field. All QuickPouch machines are designed, built, and supported from RND’s facility in Lakewood Ranch, Florida.
As the OEM for QuickPouch equipment, RND provides:
- New QuickPouch systems and application-specific tooling
- Genuine spare and replacement parts
- Upgrades, change parts, and retrofits
- Integration support with upstream and downstream automation
- Operator and maintenance training, remote support, and field service
Whether you are planning a new project or supporting installed equipment, RND gives you a clear, long-term support path for every QuickPouch system under one OEM partner.
Ready to Evaluate QuickPouch Vertical?
Share your product details, including pouch size, materials, and volume requirements. RND’s team will help you determine whether the Vertical or another QuickPouch platform is the best fit for your process.
