DESKTOP FORM-FILL-SEAL SYSTEM
QuickPouch Mini by RND Automation
A compact desktop form-fill-seal system designed for small, four-side-sealed pouches formed from rollstock. Ideal for liquids, suspensions, and compatible powders.
Overview

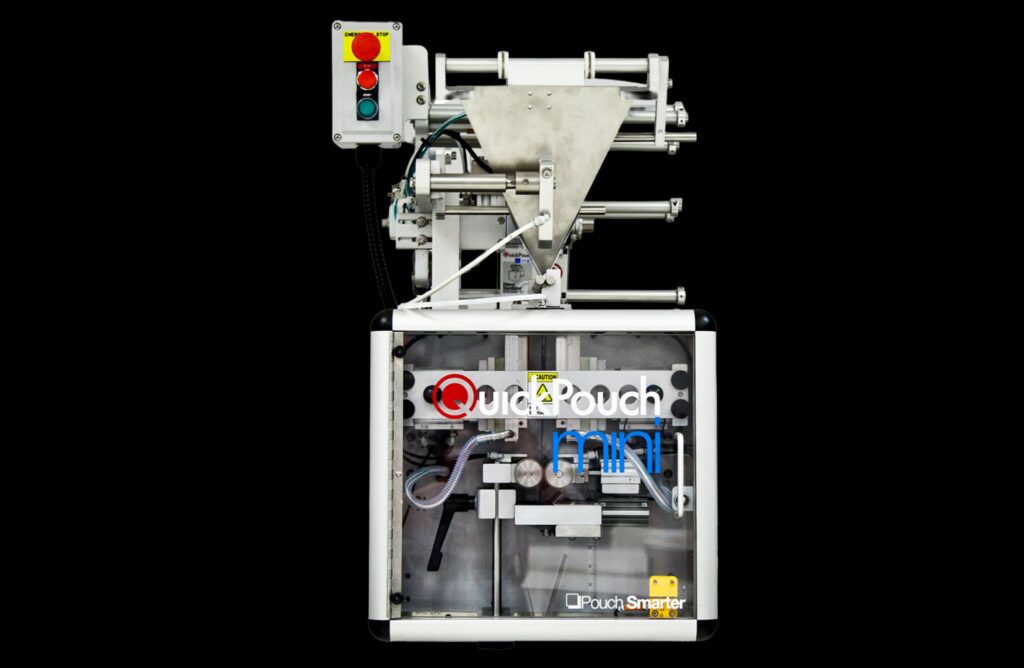

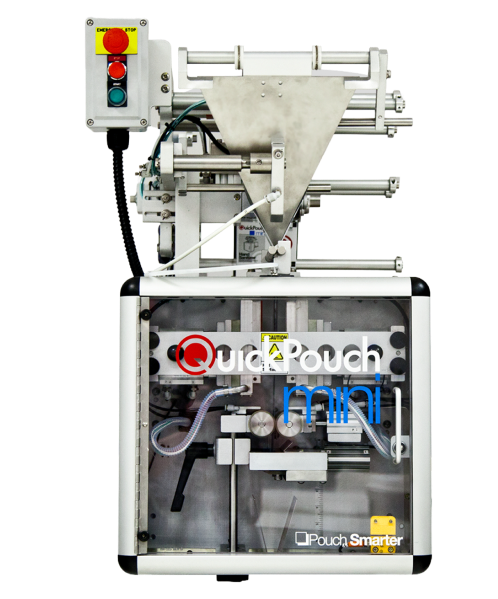

The QuickPouch Mini is a compact, bench-top form-fill-seal machine that produces small four-side sealed pouches from rollstock. It’s designed for labs, pilot lines, and low-volume production environments where space is limited but quality packaging is essential.
With its small footprint and straightforward operation, the Mini is an ideal entry point for companies developing new products or running small batches. It handles liquids, suspensions, and compatible powders with precision, providing the same four-sided seal quality as larger QuickPouch systems in a desktop package.
RND Automation now supports the QuickPouch Mini with genuine OEM parts, technical service, and upgrade options to help you scale from R&D to production.
Key Features
Desktop Form-Fill-Seal
Compact bench-top footprint designed for R&D labs, pilot lines, and low-volume production environments.
Four-Side-Sealed Pouches from Rollstock
Forms, fills, and seals small four-side sealed pouches from rollstock using dual-web construction.
Ideal for Liquids and Suspensions
Designed specifically for liquids, suspensions, and compatible powders. Perfect for sample preparation and small-batch packaging.
Simple Operation
User-friendly controls with manual or automatic mode operation. Easy setup and changeover for different pouch sizes.
Benefits
- Affordable entry point for pouch packaging
- Minimal floor space requirement
- Quick setup and changeover
- Ideal for R&D and pilot production
- Scales to production with larger QuickPouch models
Typical Applications
- Laboratory sample packaging
- Pharmaceutical liquids and suspensions
- Diagnostic reagents and controls
- Small-volume production runs
- Product development and testing
How It Works
Load Material
Mount rollstock and route through forming section
Form the Pouch
Dual webs create side and bottom seals to define pouch
Fill Product
Dispense liquid, suspension, or powder into open pouch
Seal and Cut
Top seal applied and pouch cut to length
Collect
Finished pouches discharge to collection area
Technical Specifications
| Pouch Size (standard) | Up to approx. 6" L × 6" W |
| Pouch Style | Four-side sealed pouch from dual webs |
| Materials | Tyvek®, polyester, foil laminates, paper-based structures |
| Machine Dimensions | Approx. 45" W × 43.5" H × 22" D |
| Operating Modes | Fully automatic mode with timer; manual mode; foot-pedal triggering |
| Indexing | Eyespot or index-to-length |
| Guarding | Fully interlocked Lexan® enclosure, designed for cleanroom use |
Utilities: AC power and compressed air required. Typical configurations use 110–240 VAC single-phase on a dedicated 20–30 A circuit with approximately 100 psi air supply.
Options & Integrations
- Custom pouch sizes
- Alternative film materials
- Quick-change tooling
- Different seal die configurations
- Temperature and pressure monitoring
- Spare die sets
RND can customize the Mini for specific applications or integrate it with upstream filling equipment.
- Custom filling systems for liquids or powders
- Modified pouch sizes and configurations
- Validation and documentation packages
- Integration with dispensing equipment
